JXH1-63 Isolating Switch

JXH1-63 Isolating Switch

JXH1-63 Isolator switch has high stability, mainly as the main switch in the terminal combination of electrical appliances, suitable for the power distribution and control loop of AC 50HZ or 60HZ, rated voltage below 415V,.It can also be used to control motors, small power appliances and lighting.Widely used in industrial and mining enterprises, high-rise buildings, commercial and family places and so on.

Get Quote
Basic Specification and Main Parameters

Model number


Pole number



IEC 60947-1

Rated working current(In)

20A, 25A, 32A, 40A, 63A, 80A, 100A, 125A

Rated working voltage(Ue)


Rated frenquency


Electric life

1500 times

Mechanical life

8500 times

Enviroment temeperature


Installation level


Installation style

35mm din rail

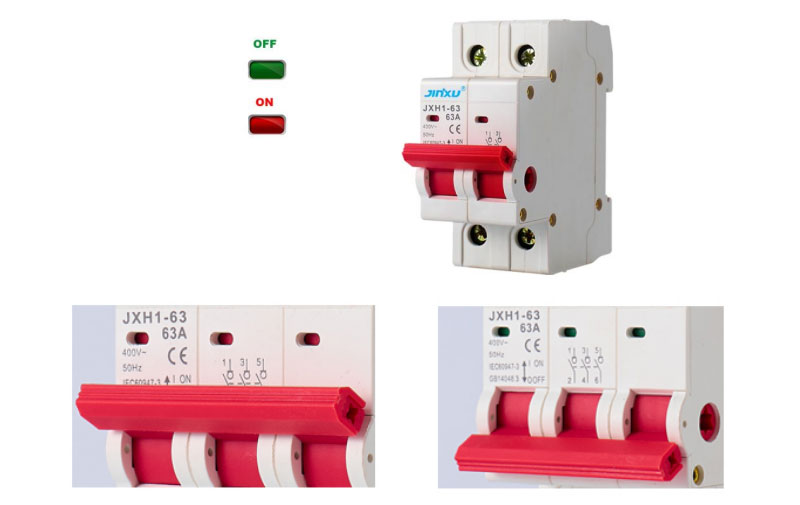

Red and green indicator ----power on and off at a glance---- avoid wrong operation

Red indicates that the power supply is energized. Push the handle upward then switch connect to the power supply

The green handle indicates that the power supply is disconnected. Push the handle downward then the switch disconnect power supply.


Product Detail

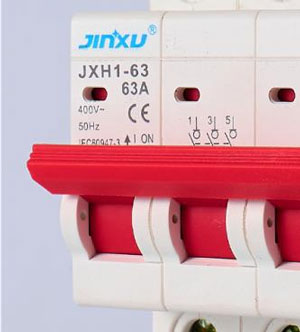

Wide Handle

The smooth lines of the handle are consistent with the human body
Customary handle radian
Reduce the pressure of water chestnut on fingers
Better pull !

Large Terminal

The quality of the terminal mainly depends on the torque it bears and
the rust resistance, compliance with the national compulsory certification standards,
to ensure the safety of operation.

DIN-rail mounting

Standard guide rail installation,save both time and labour
Easy installation
