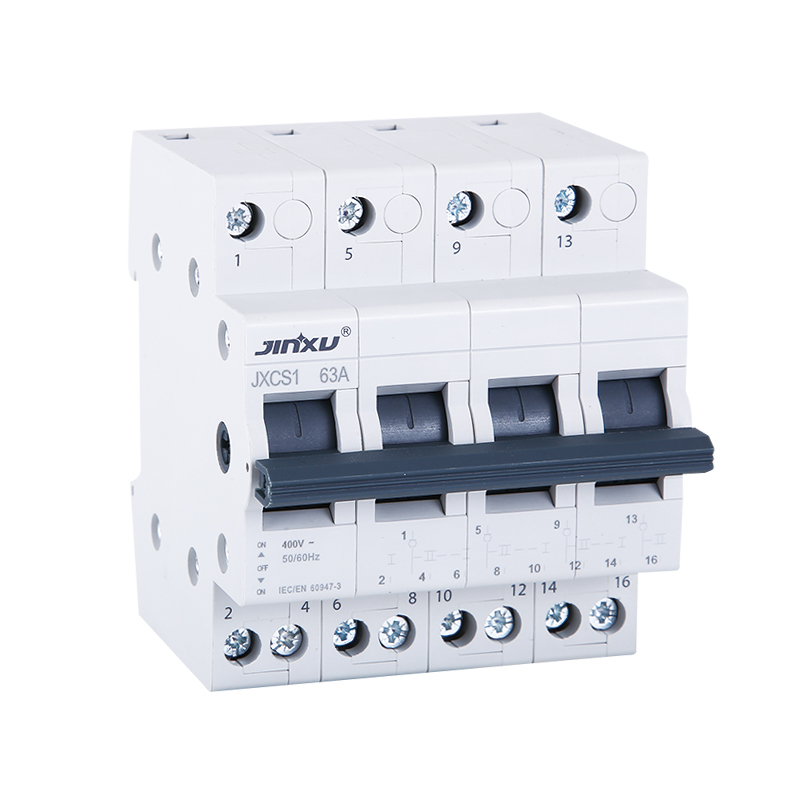

The Changeover Switch can switch on, Load and break the circuit under normal conditions, using as Switch Disconnectors.
| Pole | 1P 2P 3P 4P |
| Rated Voltage | 230/400V |
| Rated Current | 16,25,32,40,63A |
| Rated Frequency | 50/60Hz |
| Contact form | 1-0-2 |
| Electrical Life | 1500 Cycles |
| Mechanical Life | 8500 Cycles |
| Protection degree | IP20 |
| Ambient Temperature | -5℃ ~ 40°C |
| Terminal/Cable size | 16mm2 |
| Mounting | On DIN rail EN60715(35mm) |
Outline & Installation Dimension(mm)
