Basic Specification and Main Parameters
|
Model Name
|
JXL8-63
|
|
Pole number
|
2P,4P
|
|
Standard
|
IEC61008.1,EN61008.1
|
|
Certificate
|
CE,CB
|
|
Rated working current(In)
|
10A,16A,25A,32A,40A,63A,80A
|
|
Rated working voltage(Ue)
|
240V(2P),415V(4P)
|
|
Rated frenquency
|
50/60Hz
|
|
Rated insulation voltage(Ui)
|
500V
|
|
Rated residual operating current(I∆n)
|
30mA,100mA,300mA,500mA
|
|
Rated residual un-operating current(I∆no)
|
15mA,50mA,150mA,250mA
|
|
Sensibility
|
A&AC Type
|
|
Maximum operating time
|
I∆=I∆n t≤0.1s; I∆=5I∆n t≤0.04s
|
|
Rated making and breaking capacity(Im)
|
In≤50A 500A, In≤63A 630A
|
|
Limiting value of un-operating current
|
6In
|
|
Rated limiting short-circuit current(Inc)
|
4500A
|
|
Mechanical life
|
6000
|
|
Electric life
|
4000
|
|
Protection degree
|
IP20
|
|
Enviroment temeperature
|
-5℃~+40℃
|
|
Installation level
|
≤2000m
|
Operation Principle Figure
Security Warning
● This product must be installed professionally.
● Operation with wet hands is strictly prohibited in case of electric shock hazard.
●The products don't have the dust-proof function with protection class IP20, please install in a sealed box when they are used in a dusty environment.
● The product can't protect the risk of electric shock that caused by two lines contact protection circuit at the same time.
● Residual current protection features is te sted and adjusted by the manufacturer,users can not adjust the product at random during usage.
● RCCB must not be wetted of soaked by rain, snow or water during transportation, storage and usage.
Outline & Installation Dimension

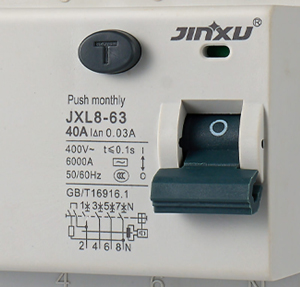

Product View
|
|
Wide Handle
The smooth lines of the handle are consistent with the human body
Customary handle radian
Reduce the pressure of water chestnut on fingers
Better pull !
|
|
|
DIN-rail mounting
Standard guide rail installation,save both time and labour
Easy installation
|
