JKP1-C40 Surge Protector

JKP1-C40 Surge Protector

Surge protector, also known as lightning arrester, is a kind of electronic equipment, instruments, communication lines to provide safety protection of electronic devices.When the electrical circuit or communication line produce peak current or voltage suddenly because of external interference, surge protector conducting and shunt in a very short time,so as to avoid surge damage to other equipment in the circuit.

Surge protector is suitable for AC 50/60Hz, rated voltage 220V to 380V power supply system,protect indirect lightning and direct lightning impact or other instantaneous surge.This SPD is applicable to family residence, tertiary industry and industrial surge protection requirements area.

Get Quote
Basic Specification and Main Parameters

Model Name

JKP1

Pole number

1P,2P,3P,4P

Standard

IEC61643.1

Rated Voltage(Un)

220V/380V

Max continuous operating voltage (Uc)

385V/420V

Protection level( Up)

≤1.8KV ,≤2.5KV,≤3KV,≤4KV

Nominal discharge current (8/20uS)( In)

20KA,25KA,30KA,40KA,50KA,60KA

Max discharge current (8/20uS) Imax

40KA,60KA,80KA,100KA

Mounting

35mm guide rail installation

Temperature range

-40℃ ~ +80℃

Protection grade

IP20

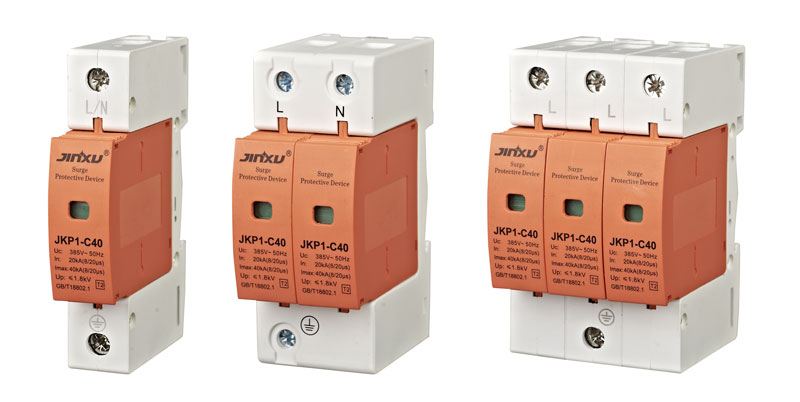

Product View
